UV Ink Printer
Digital UV Flatbed Printer
UV Ink Printer

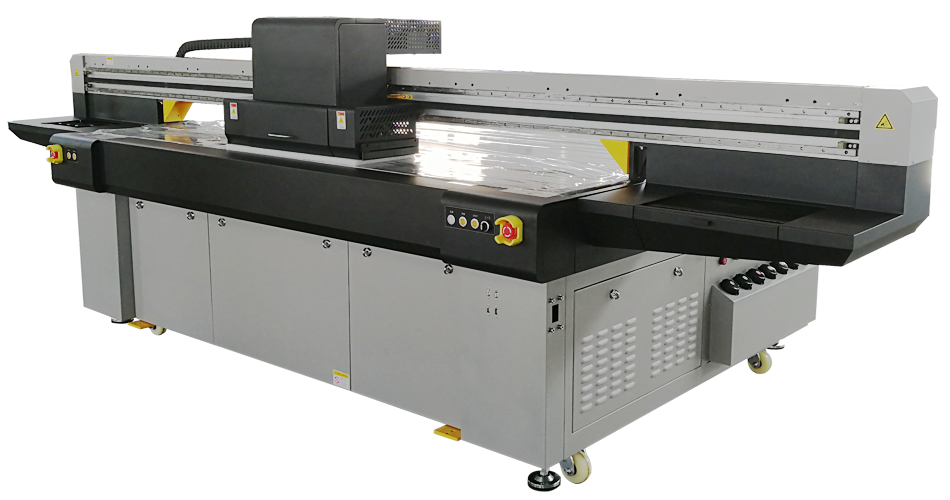

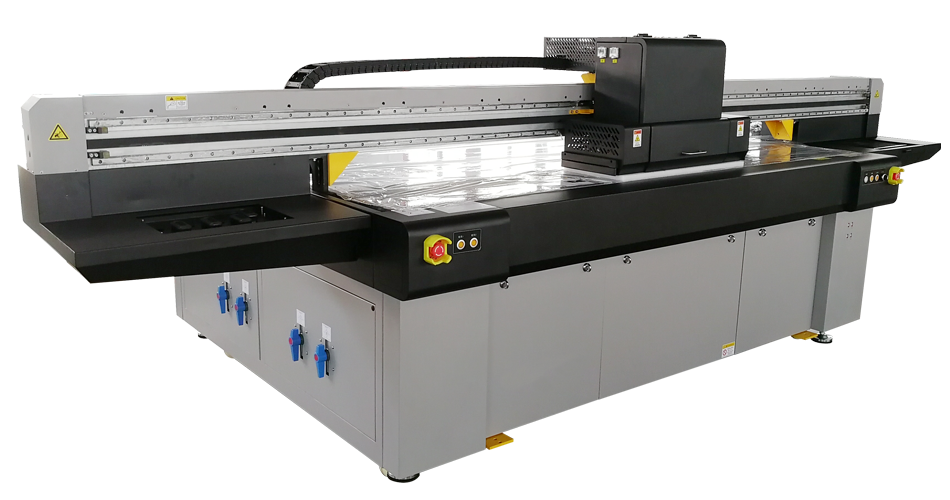

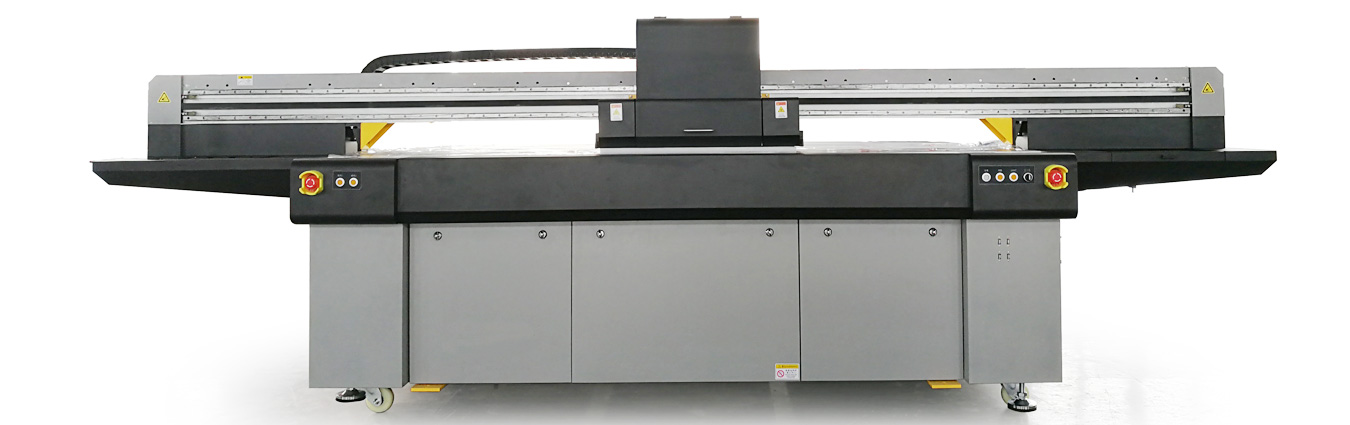

SC-2513UV-Gen5

Digital UV Curing Ink Printing Machine

SC-2513UV-Gen5 works with 2-8pcs Ricoh Gen5 grayscale heads, variable droplet technology, resolution up to 2400DPI. It can print with CMYK+W+V(W V optional), wide application, high stability, multiple mode printing. It prints with non-voc UV ink, which is friendly to environment.
Wechat:+86 173 2010 3955
01
Feature
01

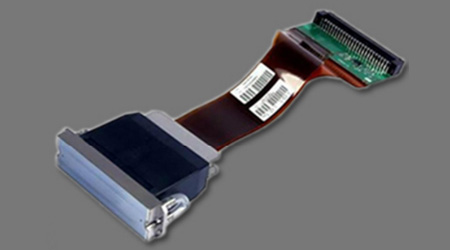

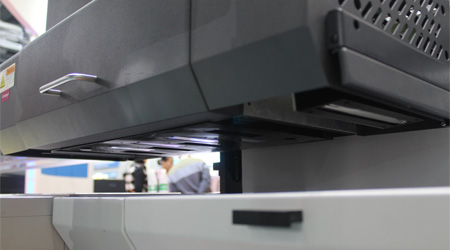

2-8 Ricoh Gen5 heads, variable droplet technology.The droplet varies from 7pl, 14pl to 21pl. And highest resolution is 2400DPI.

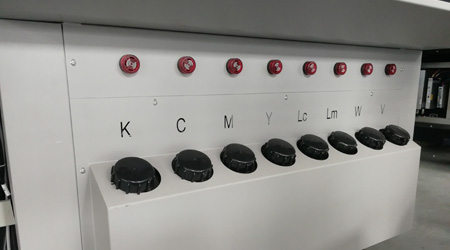

Auto white covering, white base, spot color etc. It has totally 16 printing modes which can meet different clients’ demand.
02
Auto white covering, white base, spot color etc. It has totally 16 printing modes which can meet different clients’ demand.
Auto white covering, white base, spot color etc. It has totally 16 printing modes which can meet different clients’ demand.
03
Grayscale technology is used for color gradient printing, 30%-50% ink can be saved. Non-voc environmental friendly UV ink is used.
Grayscale technology is used for color gradient printing, 30%-50% ink can be saved. Non-voc environmental friendly UV ink is used.
04
Printing speeed 40Sqm/H, it can meet the production demand of different clients.
Printing speeed 40Sqm/H, it can meet the production demand of different clients.
05

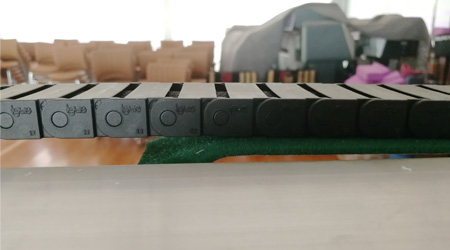

With this imported Germany mummut ink chain,Super Precision with Low Friction Noise.
With this imported Germany mummut ink chain,Super Precision with Low Friction Noise.
06
Widely application media,such as:stainless steel,ceramic tile,acrylic, metal, glass, wood plate, door.
Widely application media,such as:stainless steel,ceramic tile,acrylic, metal, glass, wood plate, door.
02
Printer Details
White Ink Circulation System
White Ink Circulation System
To keep double functions which are the white ink main tank intermittent mixing and pipeline real-time circulation work,as to keep the white ink flow all time and prevent pigment precipitation.
Partition Printing
Partition Printing
In different printing area to print on different types media,which will save time because of media change,so that improve the printing capacity within unit time.
Suction Power Adjustable
Suction Power Adjustable
Vacuum power with each suction zone can be adjusted base on different types media,it helps move the different weight of media easily.
Data Statistics
Data Statistics
After each picture is printed completely,the computer automatically statistics the amount of ink consumption,the printing item,the area and so on.
03

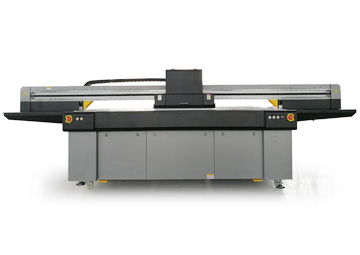

Specification
Printhead Ricoh Gen5 Grey Scale Micropiezo  Printhead
Printhead Quantity 2-8
Print Size 2500*1300mm
Media Thickness 0-100mm
Ink Type Environmental UV Curing ink
Ink Color Standard:CMYK  Optional:LC LM W V(Vanish)
Ink Tank 2.5L/Color
Ink Supply System Auto Negative Pressure Ink Supply System
Ink Detection System Auto Alarm Low Ink Level System
RIP Software Photoprint/PrintFactory
Media Type Adobe Postscript Level3,Acrylic, Aluminium Plate, Ceramic Tile, Glass, Wood Plank, PC, TPU, Leather,PVC, etc.
Printhead Cleaning Auto Cleaning and Moisturizing,Full Colors Ink Purge,Spot Ink Purge
Media Process System 4 Zones Vaccum Platform Available for Different Kinds of Media
File Forms TIFF,JPEG,PDF,EPS,PNG,AI.BMP...
Printer Dimension 4500*2300*1700mm  1900KG
Packing Size/Weight 4500*2300*1700mm  1900KG
Power Supply 220V 50/60HZ   8KW
Lift Function Automatic Lifting of the Front, Intelligent Detection of Material Thickness
Operation System Win7 or Win10 64bit  Interface Port: Gigabit LAN
Hard Disk: 500G or more  GPU: ATI Discrete GPU
Memory:8G  CPU: Intel i5 Processor  SSD:More than 128G
Working Environment Independent,Clean, Low Dust, Low Light, Well Ventilated Workshop
TEMP.:15℃-28℃   Humidity:40%-60%RH
Ventilation Equipment Suggest to Use Exhaust Fan,600cfm
Print Speed High Speed Mode 45㎡/h
Production Mode  30㎡/h
Hyperfine Mode  23㎡/h
Specification
