SkyColor UV Hybrid Printer

SC-HD2500

UV Hybrid Printer

SC-HD2500 UV hybrid printer is a new style uv printer, which is a combination of flatbed uv printer and roll to roll uv printer.With 2-8pcs Ricoh Gen5 printead, printed picture can realize relief and 3D effects, easy to print spot color,make the image rich sense of hierarchy.
Wechat:+86 173 2010 3955
01
Feature
01

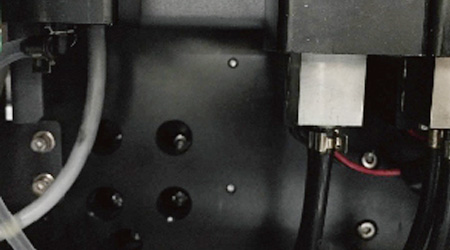

One-key ink pressing system, which is convenient to operate, and can realize function of different color ink pressing separation as to save ink.
Embossed printing scheme, copy master's handwriting, with strong embossed printing mode, making your pictures look more delicate and realistic.
02
Embossed printing scheme, copy master's handwriting, with strong embossed printing mode, making your pictures look more delicate and realistic.
Embossed printing scheme, copy master's handwriting, with strong embossed printing mode, making your pictures look more delicate and realistic.
03

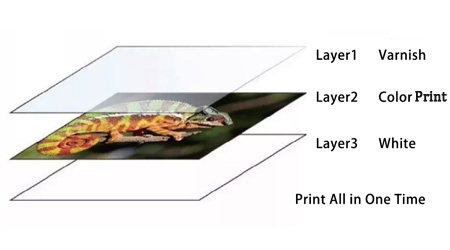

Synchronous output of color+white +color+varnish,uv printer makes varnish present a shocking visual effect that achieves a 3D effect on printing.
Synchronous output of color+white +color+varnish,uv printer makes varnish present a shocking visual effect that achieves a 3D effect on printing.
02
Printer Details
THK Mute Linear Rail
THK Mute Linear Rail
Greatly reduce noise during carriage moving and improve linear rail smooth-going.
Imported Silent Carrier Chain
Imported Silent Carrier Chain
Super precision with low friction noise, make uv hybrid printer run more smoothly.
Belt Convey System
Belt Convey System
Equipped with Teflon industrial mesh belt and high-precision servo control mesh belt feeding system to realize free switching between sheet material and roll materials printing.
Rubber Roller Feeding
Rubber Roller Feeding
Y-axis motion is squeezed by upper and lower rubber rollers, and is matched with pendulum structure for feeding to ensure accurate feeding when printing elastic materials.
03

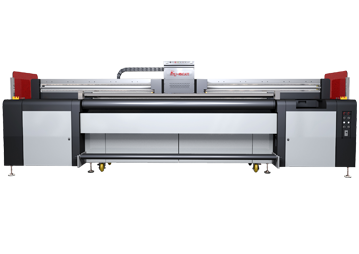

Specification
Model SC-HD2500 UV Hybrid Printer
Printhead Ricoh Gen5(7PL) Grey Scale Micro Piezo Printhead
Printhead No. 2-8H
Print Size 2500mm
Print Thickness 1mm-35mm
Ink Type Environment-friendly UV Curing Ink
Ink Color Standard:CMYK,LC,LM,W Varnish is optional
Ink Supply System Automatic Negative Pressure Ink Supply System
Ink Monitoring System Voice Intelligent Alarm System
RIP Software Standard: PhotoPrint. Print Factory and Onyx are optional.
Media Type Wall Paper, Film, Photo Paper, Flex, Banner, PP Film, Vinyl
Media Adsorption System The suction force can be adjusted
Lifting Function Carriage Height Automatic Adjustment, Intelligent Detection of Material Thickness
Print File Format TIFF, JPEG, PDF, EPS, PNG, AI, BMP, etc.
Printer Dimension 4800mm*1500mm*1650mm(Length*Width*Height)
Packing 5000mm*1600mm*1800mm(Length*Width*Height)
Weight 1850kg / 2150kg
Power/ Power Rating 220V 50HZ/60HZ/6.5KW
Computer Configuration Computer System: Win10, 64bit; Port USB 2.0
Working Environment Independent, Clean, Low Dust, Less Sunshine, Well Ventilated Workshop
  Temperature:15℃-28℃, Humidity: 40%-70%
Ventilation Device Ventilation Fan is Necessary. Air Exhaust Volume: 600 CFM
Print Speed High Speed Mode 56.7㎡/h
Production Mode 34.2㎡/h
High Quality Mode 29.2㎡/h
Specification
04

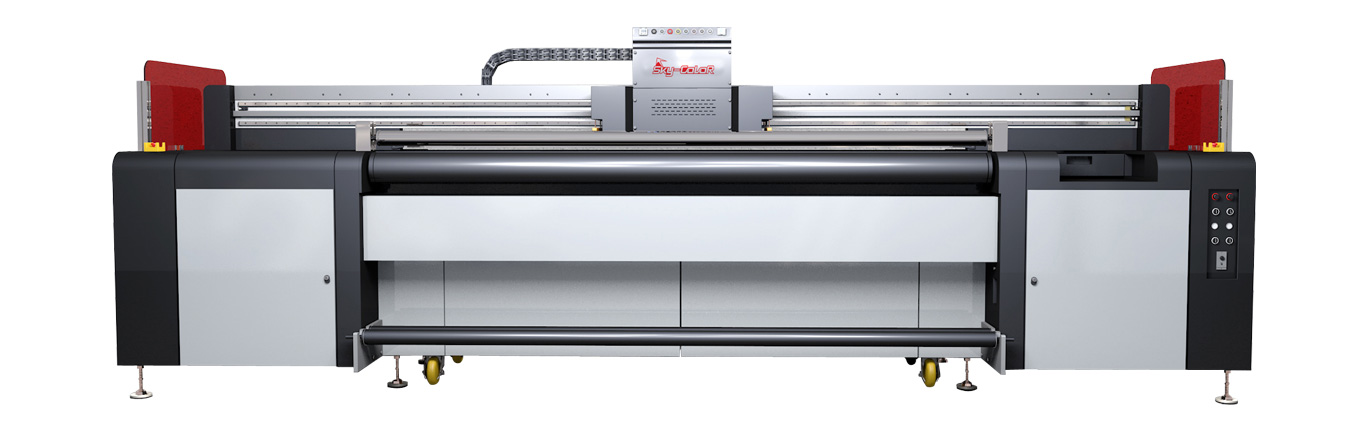

Products Video
