SC-2513UV-3200

UV-Led Flatbed Printer

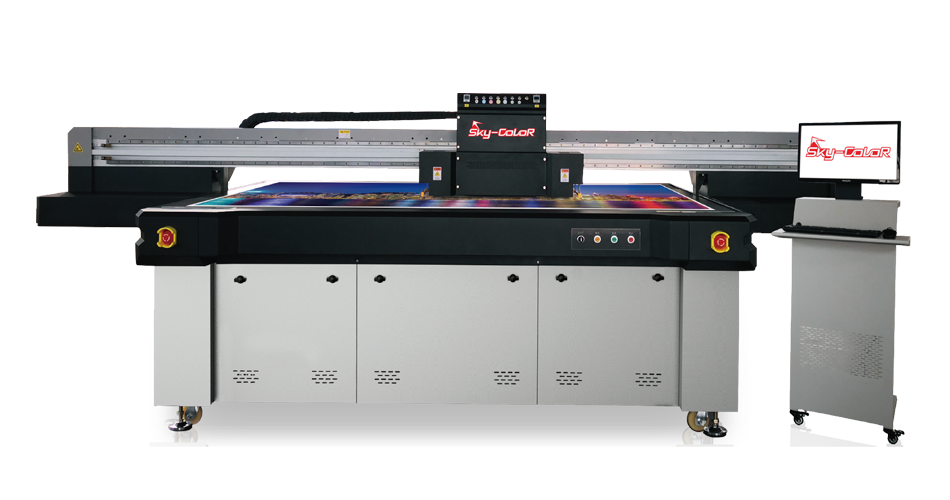

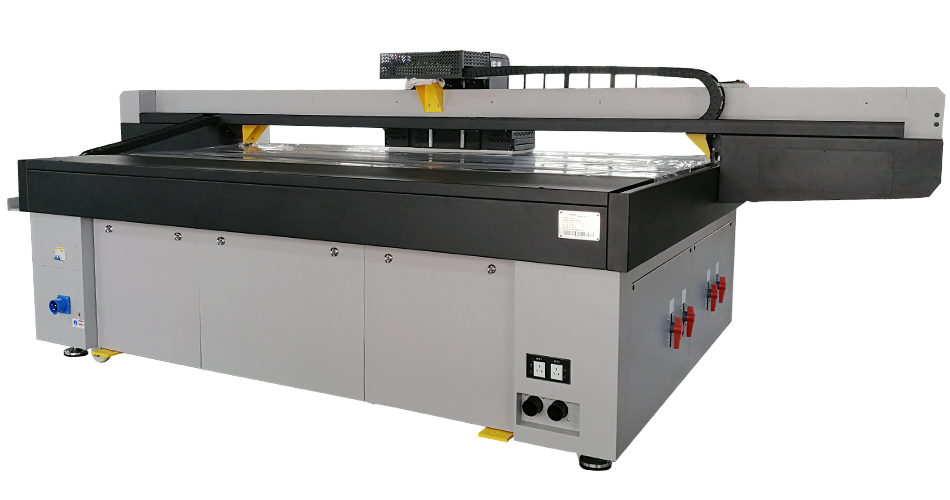

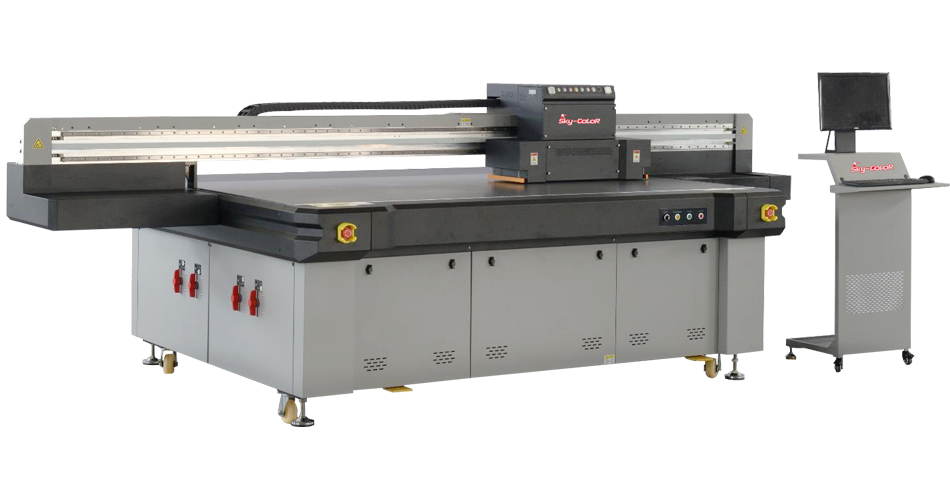

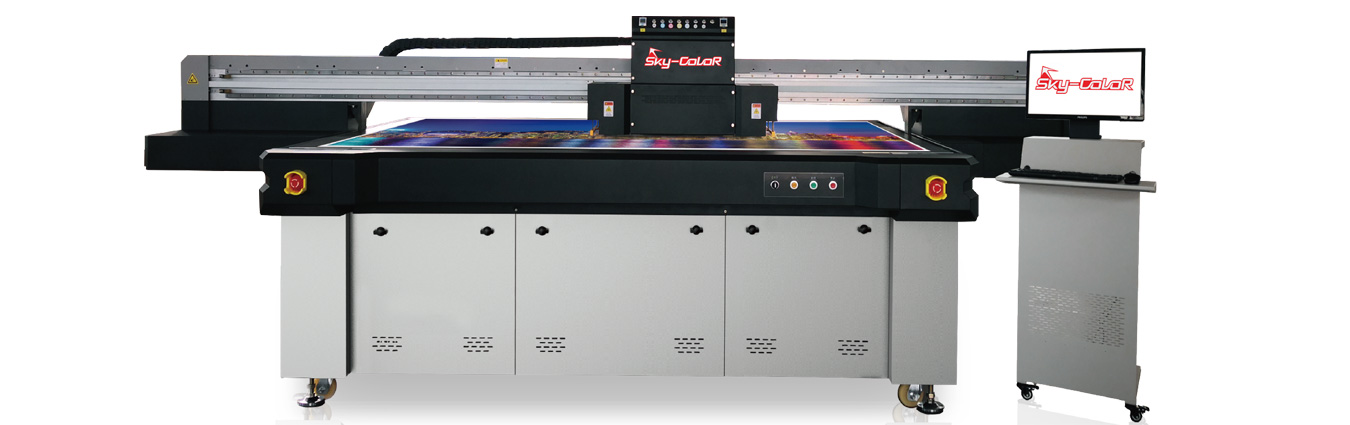

SC-2513UV-3200 printer is a high speed and high resolution industrial UV large format printer with 2-4pcs EPS3200 printheads. Max resolution 3200DPI, printing speed can reach 45Sqm/h, which can meet the production capacity requirements of large orders.
Wechat:+86 173 2010 3955
01
Feature
01

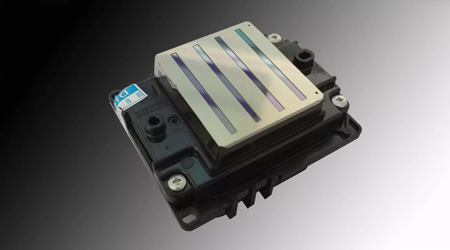

Installed with EPS3200 printhead, one head has 4*800=3200 nozzles, max resolution up to 3200DPI.
Realize the dual function of intermittent stirring of the white ink main ink tank and real-time circulation of the ink circuit.
02
Realize the dual function of intermittent stirring of the white ink main ink tank and real-time circulation of the ink circuit.
Realize the dual function of intermittent stirring of the white ink main ink tank and real-time circulation of the ink circuit.
03

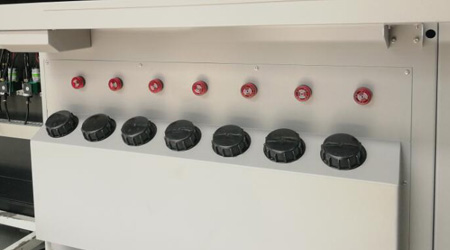

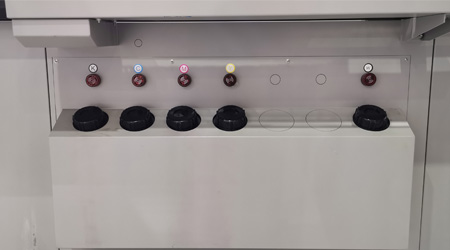

Large-capacity ink supply system and automatic ink shortage alarm can meet clients demand.
Large-capacity ink supply system and automatic ink shortage alarm can meet clients demand.
04

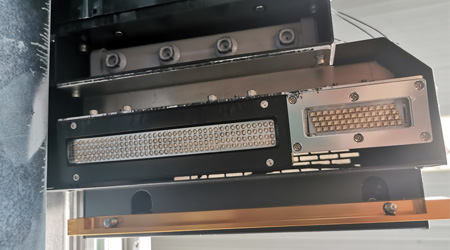

Cold light LED UV curing system with energy saving and environmental protection.
Cold light LED UV curing system with energy saving and environmental protection.
05
The platform can realize the adsorption function by region. Easy loading and unloading operation.
The platform can realize the adsorption function by region. Easy loading and unloading operation.
06

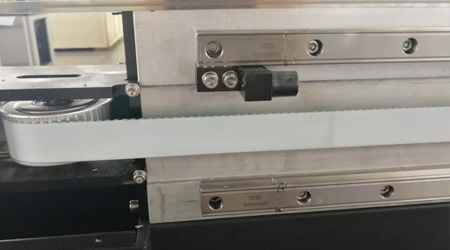

Double Japan THK guide, low noise during printing, Improve the running smoothness and service life.
Double Japan THK guide, low noise during printing, Improve the running smoothness and service life.
02
Printer Details
Germany Mummut Ink Chain
Germany Mummut Ink Chain
With this imported mammut brandcarrier chain,Super Precision with Low Friction Noise.
LEADSHINE Motor
LEADSHINE Motor
Chinese most famous LEADSHINE motor, longer working life, high resolution, low length error, more stable.
Printhead Protection Device
Printhead Protection Device
Equipped with static eliminating device and anti-crash device, avoid damage on pinthead and printer.
Data Statistics
Data Statistics
After each picture is printed completely,the computer automatically statistics the amount of ink consumption, the printing time,the area and so on.

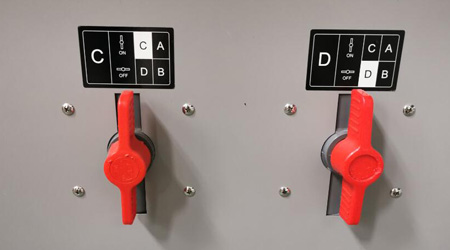

Suction Power Adjustable
Suction Power Adjustable
Vacuum power with each suction zone can be adjusted base on different types media,it helps move the different weight of media easily.
Automatic White Skip Function
Automatic White Skip Function
The carriage will skip to next print area during empty image part as to save time and higher the efficiency.
Media Diversity
Media Diversity
Metals:stainless steel plate; copper plate;aluminum plate;aluminum plastic plate; Non Metals: Ceramic Tile,Marble,Glass,Acrylic,PC,PS Plastic Board, Rigid Foam Plastic PVC,Elastic Foam Plastic and so on. Flexible Medias:Light Box Soft Film, Transparent Fi
White Ink Circulation System
White Ink Circulation System
To keep double functions which are the white ink main ink tank intermittent mixing and pipeline real-time circulation work,as to keep the white ink flow all time and prevent pigment precipitation, avoid ink system failure.
03

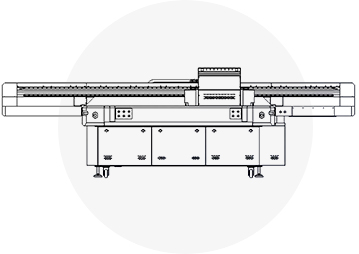

Specification
Printhead Epson 3200 Printhead
Printhead Quantity 2-4
Print Size 2500*1300mm
Media Thickness 0-100mm
Ink Type Environmental UV ink
Ink Color CMYKW
Ink Tank 2.5L/Color
Ink Supply System Auto Negative Pressure Ink Supply System
Ink Detection System Auto Alarm Low Ink Level System
RIP Software Photoprint/PrintFactory/Onyx
Media Type Acrylic, Aluminium Plate, Ceramic Tile, Glass, Wood Plank, PC, TPU, Leather,PVC, etc.
Media Process System 4 Zones Vaccum Platform Available for Different Kinds of Media
File Forms TIFF,JPEG,PDF,EPS,PNG,AI.BMP...
Packing 4500*2300*1700mm  1900KG
Power Supply 220V 50/60HZ   8KW
Lift Function Automatic Lifting of the Front, Intelligent Detection of Material Thickness
Operation System Win7 or Win10 64bit  Interface Port: Gigabit LAN
Hard Disk: 500G or more  GPU: ATI Discrete GPU
Memory:8G  CPU: Intel i5 Processor  SSD:More than 128G
Working Environment Independent,Clean, Low Dust, Low Light, Well Ventilated Workshop
TEMP.:15℃-28℃   Humidity:40%-60%RH
Ventilation Equipment Suggest to Use Exhaust Fan,600cfm
Print Speed
Tested on linear print without feather
High Speed Mode 45㎡/h
Production Mode  30㎡/h
Hyperfine Mode  23㎡/h
Specification
