EPSON4720 Printhead Printer
UV Printer
SkyColor UV Printer

SC-H1UV-3200

EPSON3200/EPSON4720 Printhead Printer

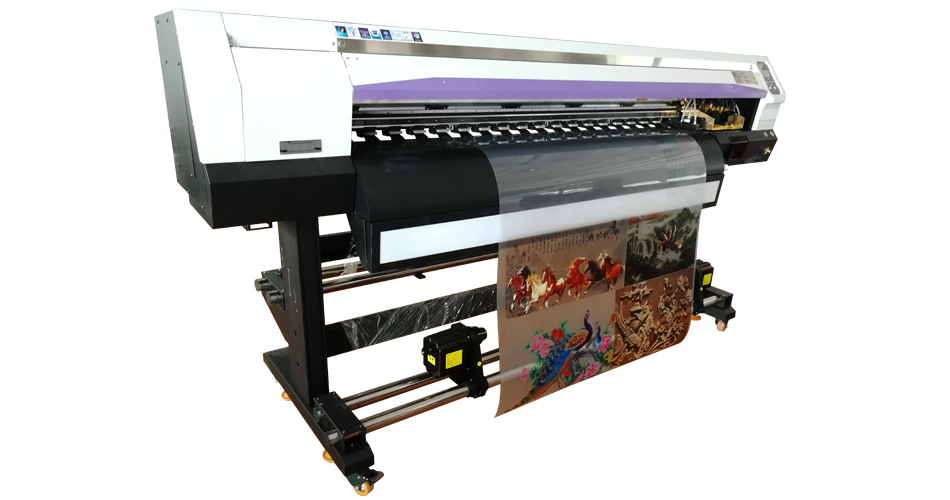

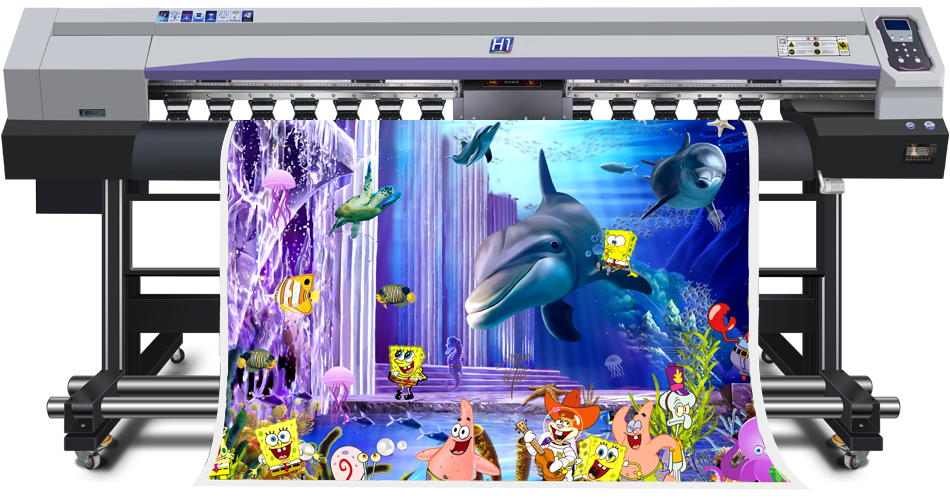

SkyColor SC-H1UV-3200 is a high resolution, great efficiency and long working life UV printer with 1.8m printing width and 3pcs EPS3200/EPSON 4720 head. It prints with CMYK+W+CMYK, which is widely used in light film, transparent film etc. Imported UV curing ink is friendly to environment.
Wechat:+86 173 2010 3955
01
Feature
01

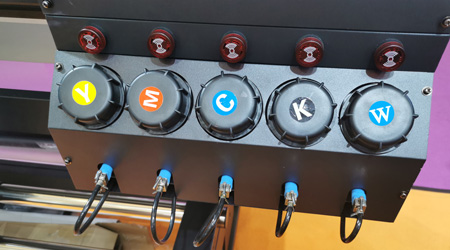

Five-color printing (CMY K+W) makes the prints delicate and realistic.
Using international standard new UV ink, very environmental.
02
Using international standard new UV ink, very environmental.
Using international standard new UV ink, very environmental.
03

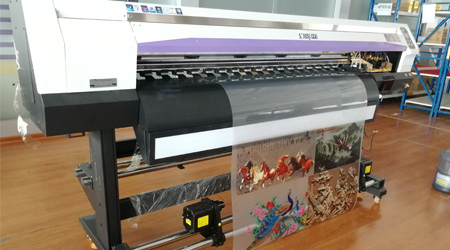

High-quality output, widely used in: advertising film, transparent film.
High-quality output, widely used in: advertising film, transparent film.
04
Using efficient UV-LED technology, it can be dried immediately after printing.
Using efficient UV-LED technology, it can be dried immediately after printing.
05
Color + white + color 3 layers of the picture, pictures can be beautifully rendered.
Color + white + color 3 layers of the picture, pictures can be beautifully rendered.
06
Compatible with different kinds of printing software.Photoprint,Maintop and Onyx is optional.
Compatible with different kinds of printing software.Photoprint,Maintop and Onyx is optional.
02
Printer Details
Epson I3200-U1 Printhead
Epson I3200-U1 Printhead
Adopting EPSON3200 micropiezo printhead,variable droplet technology,high resolution output.
Leadshine Motor
Leadshine Motor
Dual-direction imported motor,high resolution driver,linear encoder,higher resolution in length,more stable running.
THK Guide Line
THK Guide Line
Adopting original THK silent guide,which makes printer more stable even at a high speed.Long working life.
Cartridge Capping Station
Cartridge Capping Station
Capping station has auto cleaning and moisture function, which can pump ink well and keep the ink flow fluently.
03

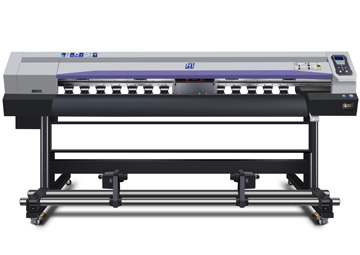

Specification
Model SC-H1UV
Printhead EPSON I3200-U1
Printhead Quantity 3
Resolution 3200DPI
Print Width 1800mm
Platform width 2000mm
Ink Type LED-UV Environmental Curing ink
Ink Color C M Y K W
Color Management ICC or density curve
Color gamut 16.7million
RIP Software Photoprint/Maintop/Onyx
Application Advertising film, transparent film, PET & PVC, ultra-transparent and other advertising decorative materials.
File Forms TIFF,JPEG,PDF,BMP...
Interface USB3.0
Power Supply 220V 50/60HZ  10A
Operation System Win7 or Win8  32/64
Feeding Method Roll to Roll     Leaf
Working Environment TEMP.:15℃-30℃   Humidity:35%-65%
Dimension 2600*700*500mm
Weight 240kg
Print Speed 6 PASS 15㎡/h
8 PASS 10㎡/h
Specification
04

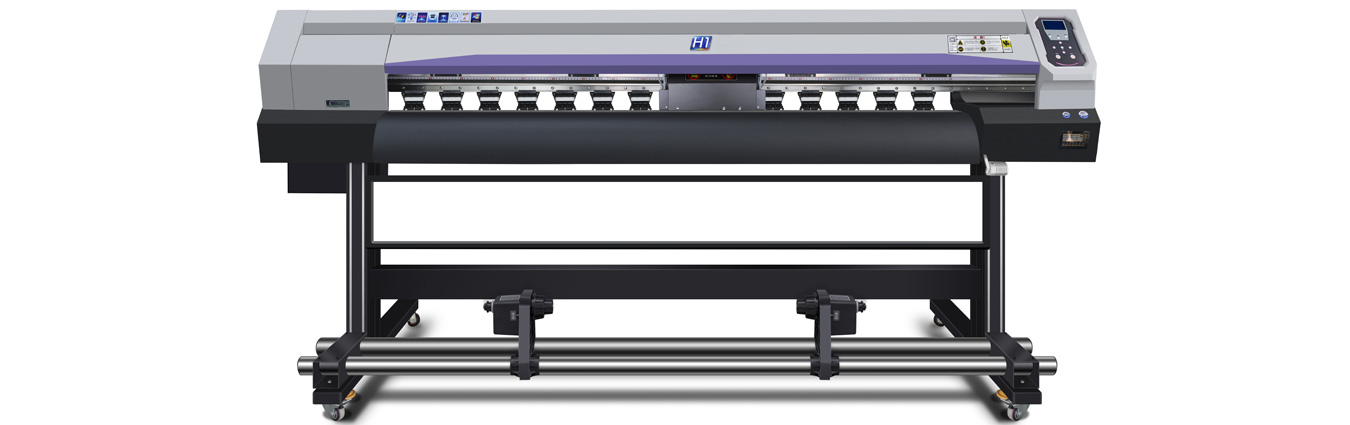

Products Video
