Roll to Roll UV Printer
Digital Ricoh Gen5 Printhead Printer
SkyColor UV Printer

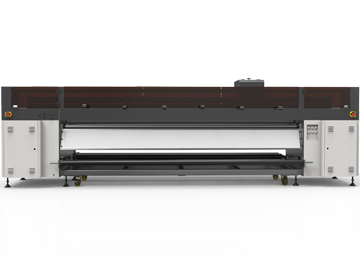

SC-320UV-Gen5

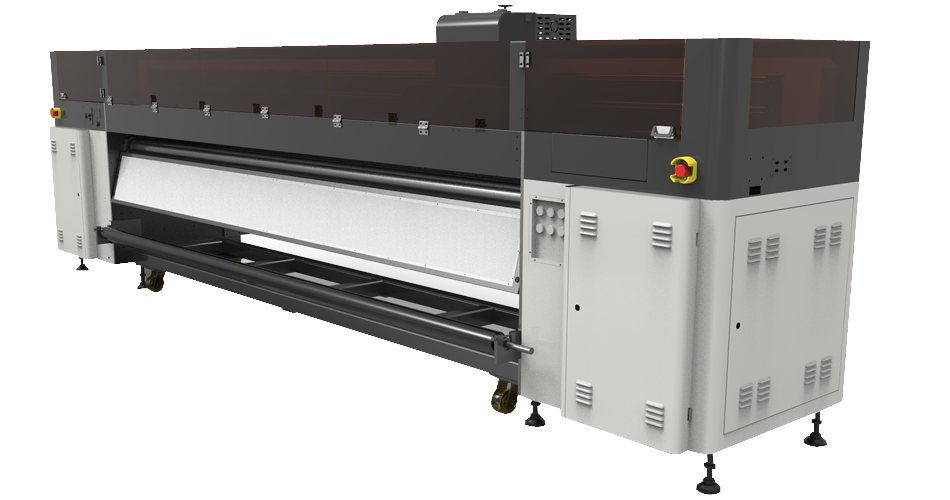

3.2m UV Roll to Roll Printer

SC-320UV-Gen5 works with 2-8pcs Ricoh Gen5 heads. It’s a high performance industrial 3.2m UV roll to roll printer, gray scale printing, intelligent feather printing technology, 3D effect and varnish effect, it’s widely used in soft film, pvc film, leather, wall cloth and all kinds of indoor decoration and outdoor advertising.
Wechat:+86 173 2010 3955
01
Feature
01

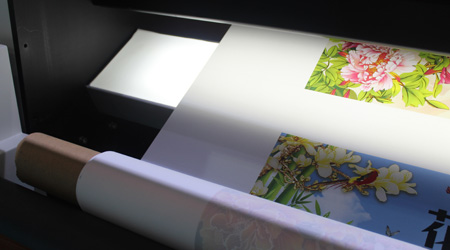

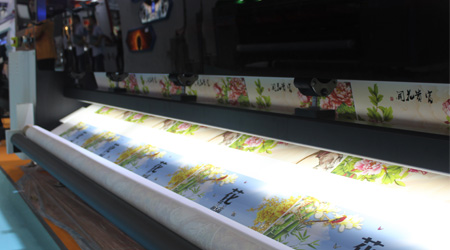

The printed image is more delicate and brighter,which improves the expressiveness of the picture with a great vision impact.

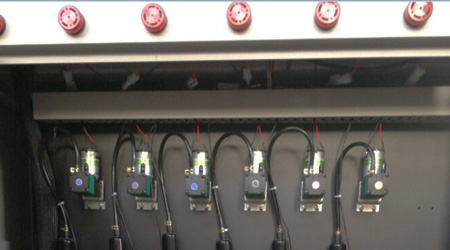

Equipped with negative and positive ink controlling system,each color ink can be controlled separately,which helps save ink during printhead maintenance.
02
Equipped with negative and positive ink controlling system,each color ink can be controlled separately,which helps save ink during printhead maintenance.
Equipped with negative and positive ink controlling system,each color ink can be controlled separately,which helps save ink during printhead maintenance.
03
After each picture is printed completely,the computer automatically statistics the amount of ink consumption,the printing time,the area.
After each picture is printed completely,the computer automatically statistics the amount of ink consumption,the printing time,the area.
04
Suction from printing table is adjustable,it will avoid media wrinkle and keep printing resolution.
Suction from printing table is adjustable,it will avoid media wrinkle and keep printing resolution.
05

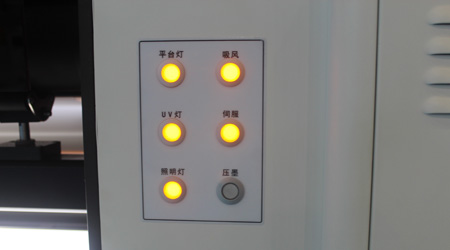

Main ink tank equipped with automatic alarm system,and alarm light will flash when the ink is lack.
Main ink tank equipped with automatic alarm system,and alarm light will flash when the ink is lack.
06
The printer can print on the transparent film with 3D effect to make your advertising picture attractive.
The printer can print on the transparent film with 3D effect to make your advertising picture attractive.
02
Printer Details

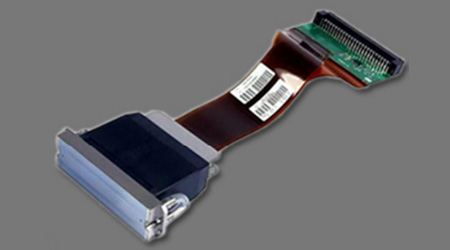

Ricoh Gen5 Printhead
Ricoh Gen5 Printhead
Type:Gen5, 7pl, printing speed is up to 45sqm/h,resolution is up to 2400DPI,The image is exquisite and the effect is amazing.

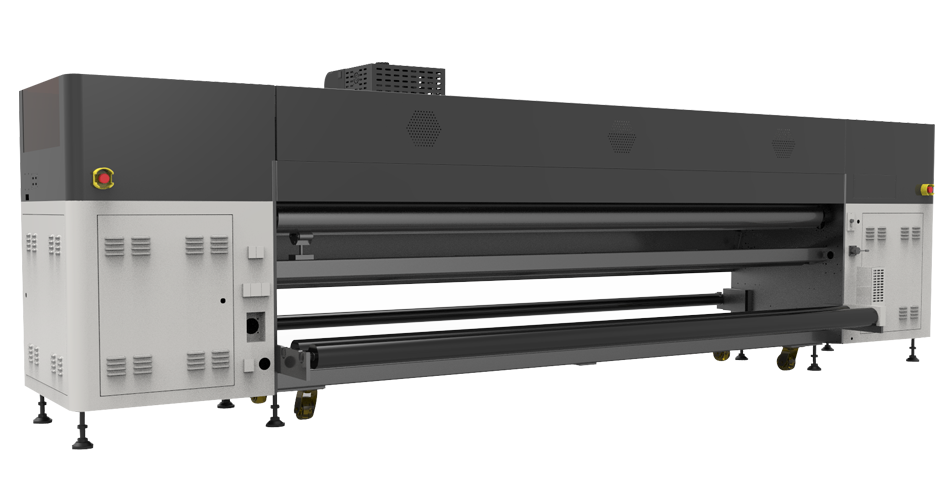

Rigid and solid structure
Rigid and solid structure
The printer’s more robust, greatly reduces shock during printing. High-precision media feeding roller and full-pressure pinch roller guarantee media moving.
Germany Mummut Ink Chain
Germany Mummut Ink Chain
With this imported mammut brandcarrier chain,Super Precision with Low Friction Noise.
Inflatable Media Take-up Roller
Inflatable Media Take-up Roller

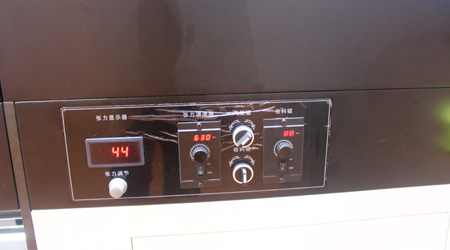

Media stepping stretching tension is adjustable to keep media going accurately.
Double Japan THK Mute Rail
Double Japan THK Mute Rail
Greatly reduce noise during carriage moving and improve linear rail smooth-going,use life and lubricating efficiency.
High Precision Heavy Roller
High Precision Heavy Roller
Mulit-poing supporting heavy roller,which will make sure the pressure and stepping are uniform always.
03
Specification
Printhead Ricoh Gen5 Printhead
Print Width 3200mm
Print Material Roll to Roll
Ink Color CMYK(LC LM W V optional)
Print Resolution 720*600DPI/720*900DPI/720*1200DPI/720*1800DPI/720*2400DPI
RIP Software Photoprint/PrintFactory
File Format TIFF,JPEG,PDF,EPS,Bitmap,Quark Xpress...
Color Control ICC Profile
Curing System LED UV System
Power Supply 220V±10% 50/60HZ  23A
Feeding Media System Dual Air Shaft,Auto Feeding and Taking-up System
Working Environment TEMP.:20℃-28℃   Humidity:40%-70%RH
Dimension 5520*1440*1740mm
Weight 2000kg
Optional Devices Double-roller Feeding&Take-up Media System,Anti-static Device
Print Speed Production Mode 50㎡/h
Photo Mode  30㎡/h
Hyperfine Mode  20㎡/h
Specification
04

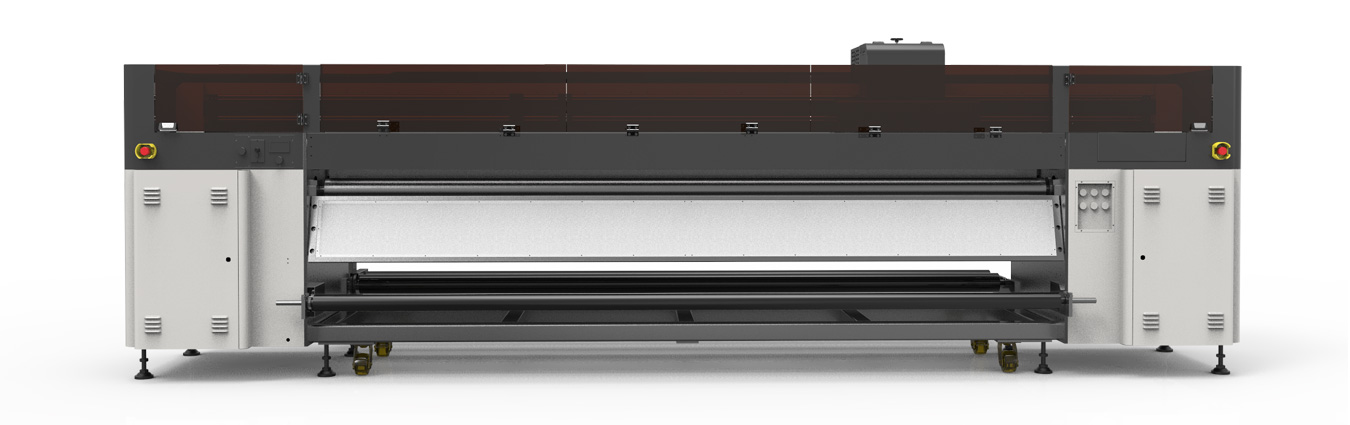

Products Video
